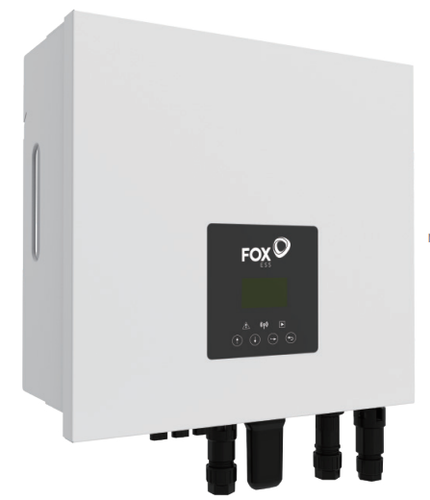

The Hybrid Grid Inverter 3.0K FOX-ESS H1

FOX Hybrid Grid Inverter – ESS H1-3.0K with simple configuration and maximum round-trip efficiency.

Using solar and night energy with a innovative range of FOX AC/hybrid inverters. Composed of advanced features and compatible with our own series of high voltage batteries (FOX’s hybrid range). is an investor of upper class.

Simple Installation: Flexible configuration, plug-play configuration, built-in fuse protection.
High Voltage: Connected to high voltage batteries for maximum roundtrip efficiency.
IP65 level: Design to prolong useful life with maximum flexibility for outdoor installation.
Remote Monitoring: Monitor your system remotely through a smartphone app or web portal.

​Data Sheet

MODEL
H1-3.0-E
H1-3.7-E
H1-4.6-E
H1-5.0-E
H1-6.0-E

AC1-3.0-E
AC1-3.7-E
AC1-4.6-E
AC1-5.0-E
AC1-6.0-E

PV INPUT (FOR HYBRID ONLY)

Maximum Input Power [W]
3900
4680
5980
6500
7800

Maximum Input Voltage [V]
600

Input Start Voltage [V]
75

Rated Input Voltage [V]
360

MPPT Operating Voltage Range [V]
80 ~ 550

Maximum Input Current [A]
13,5/13,5

Maximum Short Circuit Current [A]
15/15

Number of Independent MPP Trackers
2

Number of Strings per MPP Tracker
1

CONEXIÓN DE BATERÍA

Battery Type
Batería de LiTIo (LFP)

Battery Voltage [V]
85 ~ 450

Maximum Charge / Discharge current [A]
40

Communication interface
CAN (Inverter Communication), RS485 (BMS Update)

AC Input and Output (GRID)

Maximum AC Input Power [VA]
7000
7680
9600
10000
12000

Maximum AC Input Current (per phase) [A]
31,8
34,9
43,6
45,5
54,5

Rated Output Power [W]
3000
3680
4600
5000
6000

Maximum Apparent Output Power [VA]
3300
4048
5060
5500
6600

Rated Output Current (per phase) [A]
13,0
16,0
20,0
21,7
26,1

Maximum Output Current [A]
14,3
17,6
22,0
23,9
28,7

Nominal Grid Voltage [V]
220/230/240

Nominal Grid Frequency [Hz]
50/60

Power Factor
1 (Adjustable from 0.8 leading to 0.8 lagging)

THDi [%]
<3 @ rated power EPS OUTPUT (WITH BATTERY) Maximum Apparent Output Power [VA] 5000   5000 6000 6000 6000 Maximum Apparent Output Power (60 s) (VA) 6000 6000 7200 7200 7200 Maximum Current(per phase)[A] 21,7 21,7 26,1 26,1 26,1 Rated Output Voltage [V] 220/230/240 Rated output frequency [Hz] 50/60 Power Factor 1 (Adjustable from 0.8 leading to 0.8 lagging) THDv (Linear load) [%] < 2 @ rated power Switching time [ms] <20 EFFICIENCY European efficiency [%] 97,00 Maximum Efficiency [%] 97,80 Maximum Battery Charging Efficiency 98,50 (PV to BAT) (Full Charge) [%] Maximum Battery Discharge Efficiency 97,00 (BAT to AC) (full charge) [%] PROTECTION Insulation Monitoring Sí Residual Current Monitoring Sí DC Reverse Polarity Protection Sí Protection against the isolated island effect Sí short circuit protection Sí AC Overcurrent / Overvoltage Protection Sí Interruptor de DC Sí SPD DC: Type II, / AC: Type III GENERAL DATA Dimensions (WxHxD) [mm] 430*410*178 Weight [kg] 23 Facility wall topology without transformer cooling method NaturaL Sound Emission [dB] 35 Maximum Operating Altitude [m] 2000 Operating Temperature Range [°C] -25 ~ 60 Humidity (No Condensation) [%] 0 ~ 100 Protection Level IP65 Consumption in Standby Mode [W] ＜10 Monitoring Module WiFi, LAN, 4G, GPRS ( Optional ) Communication 2 * RS485, DRM, Ripple Control, USB Screen LCD, Applications, Websites STANDARD COMPLIANCE (MORE AVAILABLE UPON REQUEST) Security EN 62109-1, EN 62109-2   EMC EN 61000-6-2, EN 61000-6-3 Grid Regulation EN50549-1, C10 / 11, VDE-AR-N 4105, G98, G99, CEI 0-21, NRS 097-2-1, AS / NZS 4777.2 * More technical features available to be customized on demand.
