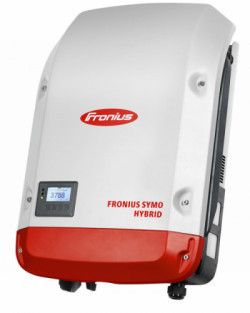

Network Inverter FRONIUS Symo Hybrid 5.0-3-S 5kW

The FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Connected Inverter, three-phase grid connected inverter. Ideal for homes and self-consumption.

Characteristics of the FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Connection Inverter
The FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Tie Inverter is a transformerless, three-phase, grid tie inverter.

Applications and features of the FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Connection Inverter:

The Fronius Hybrid inverters are designed to be able to have the lithium batteries that you can find in this link as an accumulation system, so as it cannot be otherwise, the Fronius Symo Hybrid inverters only work with Fronius Lithium batteries.
The FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Tie Inverter is a three-phase grid tie inverter. It is ideal for homes and self-consumption with batteries. It can be installed as a PV inverter or supplemented with batteries in order to have a continuous supply.
Thanks to its design, the Symo Hybrid model is compact and has a reduced weight of 20kg, in addition to being able to be installed indoors or outdoors thanks to its IP65 protection.
Symo Hybrids have a standard internet interface via Wlan or Ethernet and easy integration with components from other manufacturers, including datamanager and free connection to the solarweb portal.
It has a Meter interface that allows dynamic power management and consumption display.
The FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Connection Inverter is an inverter that incorporates two functions, the first of which is a grid connection inverter that allows us to work during daylight hours directly from the solar panels by converting the current generated by these in alternating current useful for consumption in homes and industrial buildings.
The advantage of the FRONIUS Symo Hybrid 5.0-3-S 5kW Grid Connection Inverter is that it also incorporates an inverter to connect batteries, which means that we can use the surplus during daylight hours to charge our own batteries, and thus use them in night hours without the need to depend on the electricity company at any time.

Configuration diagram of the FRONIUS Symo Hybrid 5.0-3-S 5kW Network Inverter


Monitoring example of the FRONIUS Symo Hybrid 5.0-3-S 5kW Network Inverter
